Description

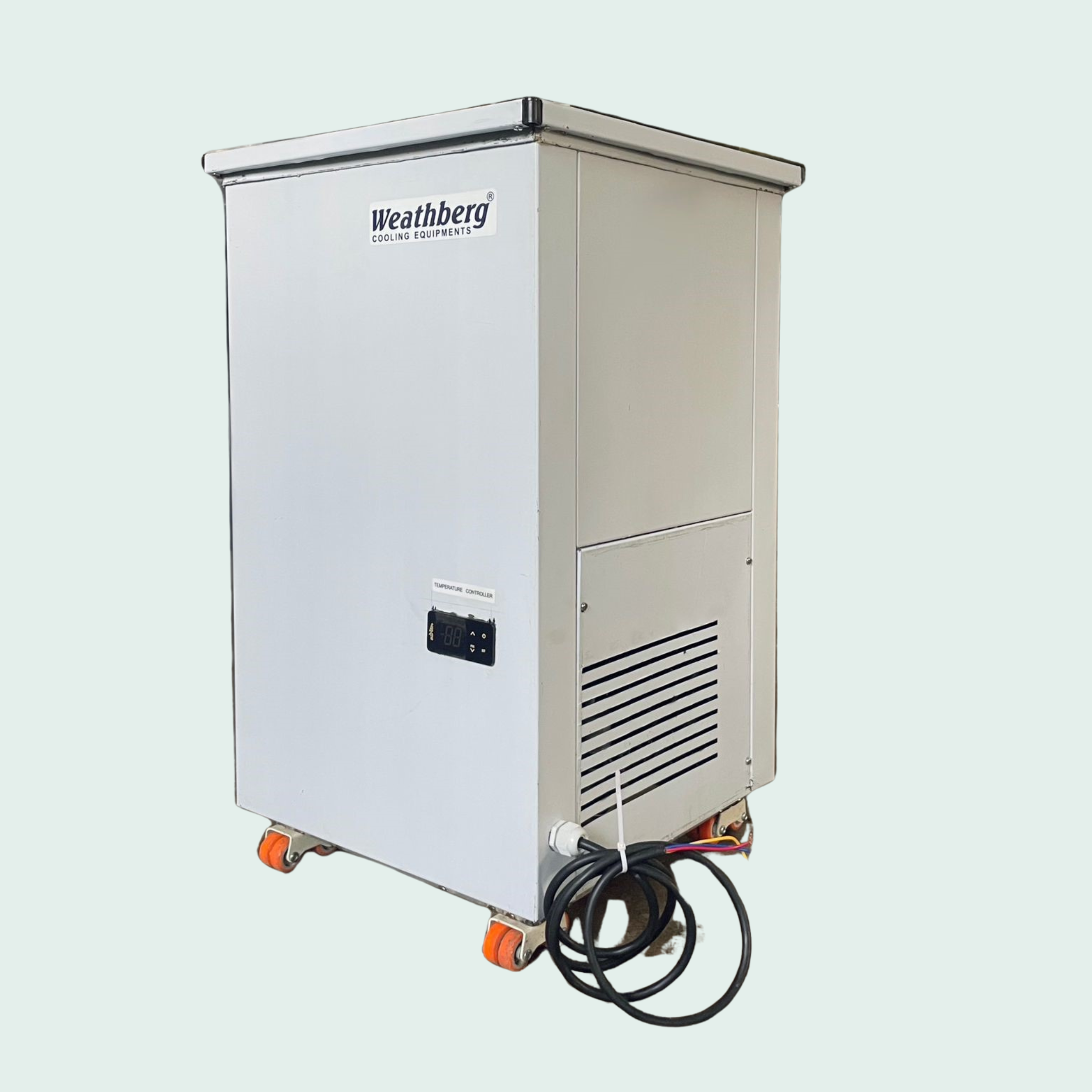

🧊 Compact Chiller – Description
Weathberg’s Compact Chillers are engineered to deliver high-efficiency cooling in a compact and space-saving design. With capacities ranging from 1 TR to 15 TR, these chillers are ideal for industrial applications where floor space and performance matter. Equipped with hermetically sealed compressors, high-efficiency pumps, and large-capacity water tanks, they ensure reliable temperature control between +5°C to +25°C. These chillers are perfect for extrusion, injection molding, packaging machines, and a variety of other process cooling applications.
📊 Specifications Table
| SR.NO | MODEL NO | TR | KW | Kcal/Hr | Voltage | Amps | Storage (Liters) | Temp Range (°C) |
|---|---|---|---|---|---|---|---|---|
| 1 | FRAC1000 | 1 | 3.517 | 3000 | 220 | 8 | 50 | +5°C to +25°C |
| 2 | FRAC1000 3P | 1 | 3.517 | 3000 | 440 | 3 | 50 | +5°C to +25°C |
| 3 | FRAC1500 | 1.5 | 5.27 | 4500 | 220 | 10 | 50 | +5°C to +25°C |
| 4 | FRAC1500 3P | 1.5 | 5.27 | 4500 | 440 | 10 | 50 | +5°C to +25°C |
| 5 | FRAC2000 | 2 | 7.05 | 6000 | 220 | 14 | 75 | +5°C to +25°C |
| 6 | FRAC2000 3P | 2 | 7.05 | 6000 | 440 | 5 | 75 | +5°C to +25°C |
| 7 | FRAC 3000 | 3 | 10.55 | 9000 | 440 | 8 | 125 | +5°C to +25°C |
| 8 | FRAC 5000 | 5 | 17.58 | 15000 | 440 | 12 | 150 | +5°C to +25°C |
| 9 | FRAC 7000 | 7.5 | 24.62 | 21000 | 440 | 16 | 200 | +5°C to +25°C |
| 10 | FRAC 8000 | 8 | 28.13 | 24000 | 440 | 18 | 200 | +5°C to +25°C |
| 11 | FRAC 10000 | 10 | 35.17 | 30000 | 440 | 22 | 250 | +5°C to +25°C |
| 12 | FRAC 12000 | 12 | 42.21 | 36000 | 440 | 26 | 250 | +5°C to +25°C |
| 13 | FRAC 15000 | 15 | 52.75 | 45000 | 440 | 28 | 300 | +5°C to +25°C |
